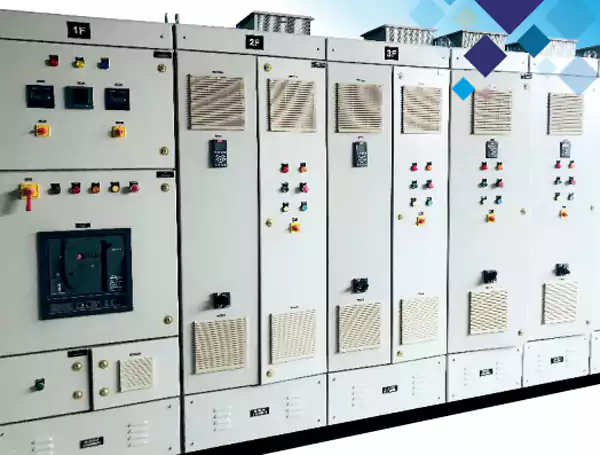

Control Panel Design & Manufacturing

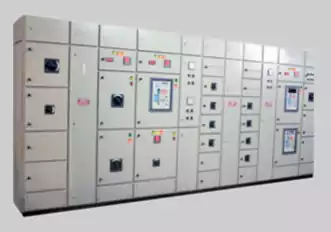

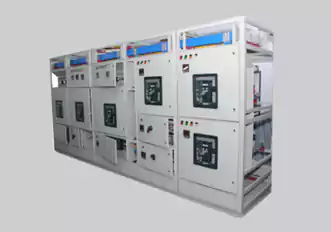

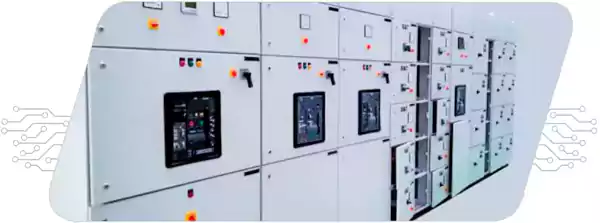

Owing to our expertise in this domain, we are engaged in offering a supreme quality PCC Panel that is used to supervise and control the voltage of power systems. Power Control Center panels for various industrial applications to provide reliable and effective distribution service. They are used to supervise and control the voltage and reactive power of the power system. The panels will undergo pretreatment for Decreasing, Water rinsing & De-rusting/ Phosphating, It will be painted with Powder Coated or Synthetic enamel as per the requirements Bus Bars I Internal Wiring uniform cross section and supported by SMC / DMC bases. Earthing Bus Bars will be running all along the Panel.

• Supply OF PCC panel with a capacity of up to 6300 Amperes & constructed with a focus on robustness and durability.
• Capable of maintaining a fault level of up to 70 kA.
• We provide bus coupler arrangements for efficient power distribution based on specific requirements.

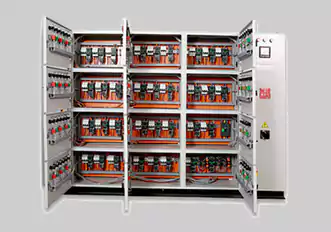

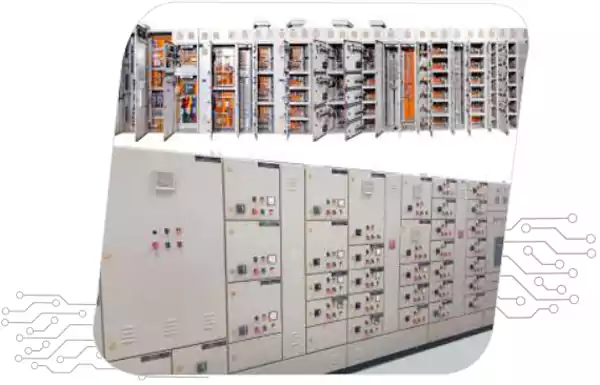

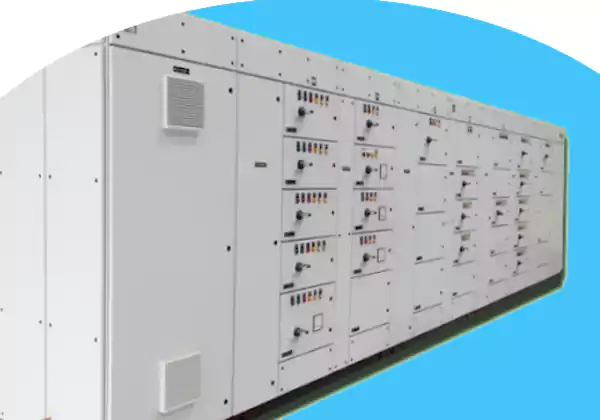

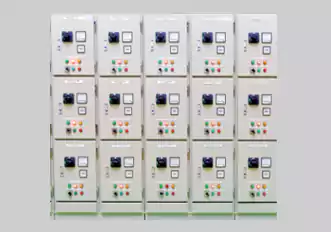

We design & manufacture low voltage switchgear panels & motor control center. Our in house design & good engi-neering practices in manufacturing combined together forms the ideal solution to the most demanding motor control applications throughout the industrial market. A motor controller is a device or group of devices that serves to govern in some predetermined manner the perfor-mance of an electric motor. A motor controller might include a manual or automatic means for starting and stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque, and protecting against overloads and faults. Every electric motor has a controller. The motor controller will have dif-fering features and complexity depending on the task that the motor will be performing on.

• Equipped for seamless integration with DCS/SCADA/PLC systems
• Adapts to diverse cable entry points, including top, bottom, or a blend of both, offering choices for front or rear access. Additionally, it provides a hybrid solution, allowing any combination of forms and types.
• CNC construction
• Safe and reliable operation
• Labelled and colour coded wiring
• 3D-CAD (Auto-CAD & E-Plan Design)
• Easy operation
• Controlling heavy starting currents

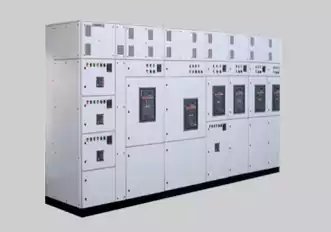

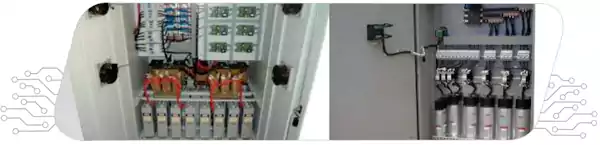

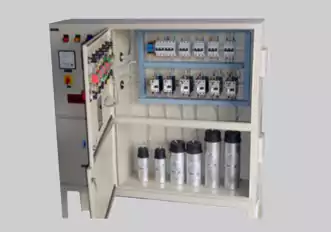

Designed with the concept of modularity which allows upgrading of kVAR rating as and when required. Advanced microprocessor based relay used to ensure real time power factor correction in the installation Current limiting contractors are used which are specially designed for capacitor switch. They are used to Supervise and Control the voltage and reactive power of the power system. We manufacture and supply a qualitative range of APFC panels, that are extensively used in various industries. These automatic power factor control panel are designed and developed using advanced techniques and are capable of saving maximum power and energy. These APFC Panel are highly efficient and accurately monitor the re-active power in power systems for saving energy and can alter the system voltage as well as current.

• Ensure precise power factor correction in the systems
• Can include detuned filters to control hamonics
• Provides protection against high inrush current during switching
• Modular to upgrade, up to 500 KVAR
• Capacitors : L&T, ABB, Epcos, Subhodhan, Shreem
• IVt* PF controllers : Epcos, L&T, Schneider
• Thyristorised or contactor based Designed with the concept of modularity.
• Easiness in operation, very low manual intervention
• Avoid power factor penalty.

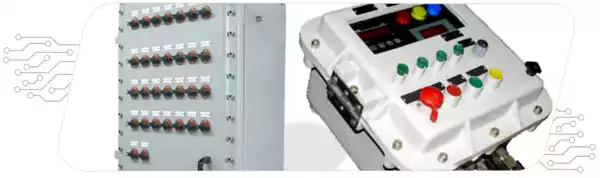

• We are recognized as leading manufacturers and suppliers of a comprehensive range of explosion-proof control panels
• Leveraging our expertise, we specialize in the manufacturing and supply of a quality-approved range of flameproof control panels

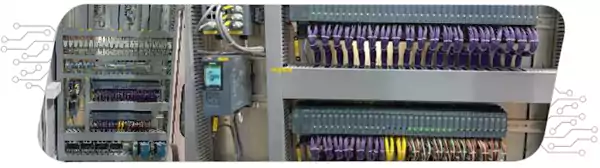

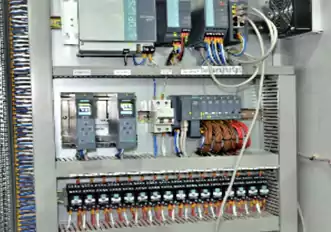

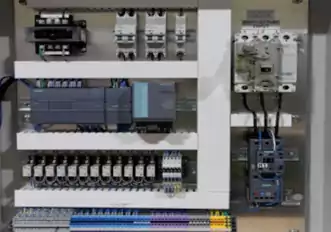

We are a reckoned organization engaged in manufacturing and supplying a comprehensive range of PLC Panels. These panels are highly appreciated for their longer functional life, easy installation and low maintenance. Our professionals make optimum utilization of the resources and develop excellent quality range of panels for the clients. Our professionals make sure to deliver effective range of panels

• We supply PLC panels equipped with hardware from reputable manufacturers, including Siemens, Rockwell Automation, Delta, Mitsubishi, Fuji, Selec, GE Fanuc, Schneider Electric, ABB, and RENU, based on customer recommendations.
• In addition, we provide third-party communication solutions for data handshaking and ensure compatibility with Industrial Building Management System (IBMS) communication protocols. These protocols include TCP/IP, Profinet, Profibus, Modbus, CC-Link, Fieldbus, DeviceNet, and ControlNet.
• Integrated with PLC, HMI, Barriers, VFD etc.
• HMI's with screen size 3.5' to 22"
• PLC's from siemens / AB / Delta / Mitsubishi / ABB / Schneider / Delta, etc.
• Desk type I Floor standing / Wall mount
• Customised as per requirement

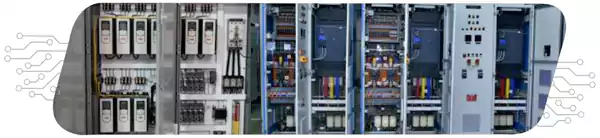

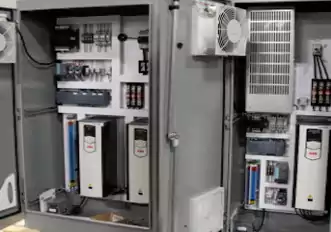

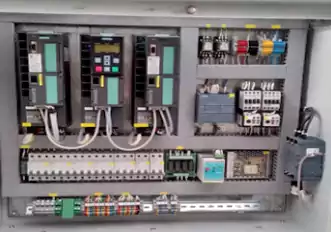

VFD Panels are designed to control the speed and torque of electric motors by varying input frequency and voltage to motors. VFD Panels are used as energy saving devices as they adjust motor speed under no load conditions or as required by the process. Such energy cost savings are especially pronounced in variable torque centrifugal fan and pump applications where there is large power reduction for a relatively small reduction in speed. We design and manufacture a diverse range of VFD panels for varied applications (closed-loop and open-loop applications).

• We offered VFD panels equipped with VFD drives from reputable manufacturers, including Siemens, ABB, Delta, Danfoss, Mitsubishi, Fuji, and Yaskawa, based on customer recommendations
• Our range includes VFD panels ranging from 0.5HP to 400HP
• Additionally, we offer independent communication to each VFD drive, connecting to PLC/DCS/SCADA through communication protocols such as TCP/IP, Profinet, Profibus, Modbus
• Our VFD panels are tailored for various applications, including chiller, AHU, conveyor, blower, pump, and crane systems.
• AHU / Chiller Control
• Pump / Motor / Blower Speed Control
• Reactor Control
• Converyor / Crane System
• Remote / Local / Bypass Control Options
• 1-400 HP (0.7457KW-298.28KW) drive panel
• Siemens / AB / Danfoss / Mitsubishi / ABB/ Yaskawa / Delta

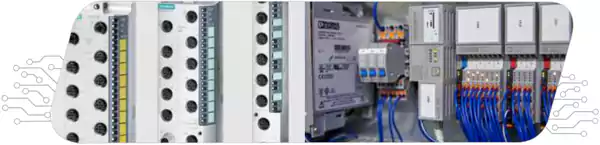

• Supplied up to 4000 lOs of Rio, including Siemens, Rockwell Automation, Delta, Mitsubishi, Fuji, Select, GE Fanuc, Schneider Electric, ABB, and RENU, based on customer recommendations
• Provided third-party communication solutions for data handshaking with the main PLC system through communication protocols such as TCP/IP, Profinet, Profibus, Modbus, CC-Link, Fieldbus, DeviceNet, and ControlNet
• Supplied field-mounted Rio panels for both FLP (Flameproof) and non-FLP areas

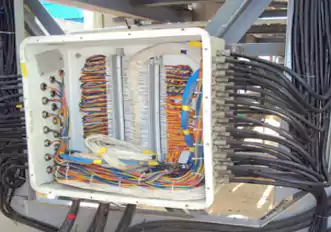

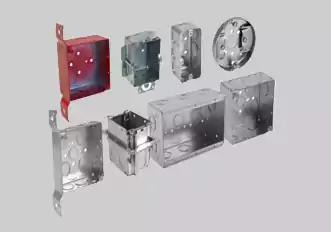

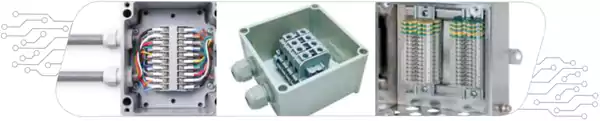

Leveraging on our state-of-infrastructure, we are able to present Junction Panels. These products are accessible for the customers in distinctive sizes and measurements, with a mean to suit their varied demands. Offered products are easy to install and maintenance freethat increase their demand in the market. In order to meet varied demands of our customers, we are offering quality assured Power Distribution Boxes. These products are profoundly acknowl-edged in electric wiring in household and business places. These distribution boxes are made up of quality assured parts and sophisticated technology. Our expert's team designed these distribution boxes by utilizing their skills and years of experience.

• SS316 / SS304 / MS Powder Coated Gasketed Trims
• FLP Junction Boxes
• Aluminium / Copper Busbar JB
• Aluminium / Copper Bus Option

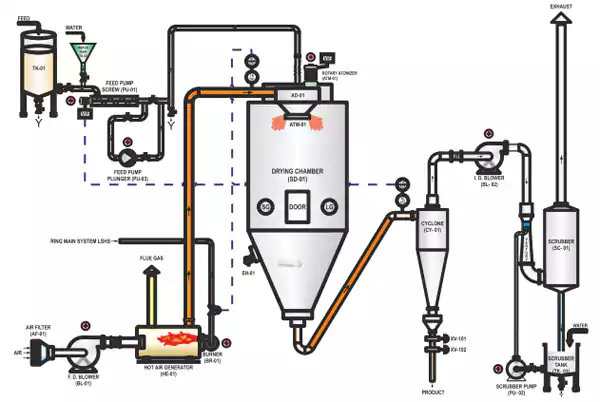

• The MIMIC panel is employed to visually represent the process flow on a mimic of the plant
• It is strategically positioned on the panel door for convenient visualization
• A customized P&ID (Process and Instrumentation Diagram) is designed specifically for the creation of the mimic on the panel. The design is tailored to meet the specific process requirements
• Relay-based control panels provide interlocking functionality through hardwiring
